Bipico
Hand Hacksaw Blades
Bimetal hacksaw and all hard hacksaw blade
Benefits
- 20 % Longer life, Faster Cutting
- Reduces inventory of different TPI Blade
- No Lost time for changing different TPI Blade
- Less Cost per cut
- Used in a variety of applications
| Type | Dimension (mm) | Use On | ||
|---|---|---|---|---|
| DIA (D) | THK (T) | BORE | ||
| 27 | 180 | 7 | 22.23 | Steel / Alloy Steel |
| 27 | 230 | 7 | 22.23 | Steel / Alloy Steel |

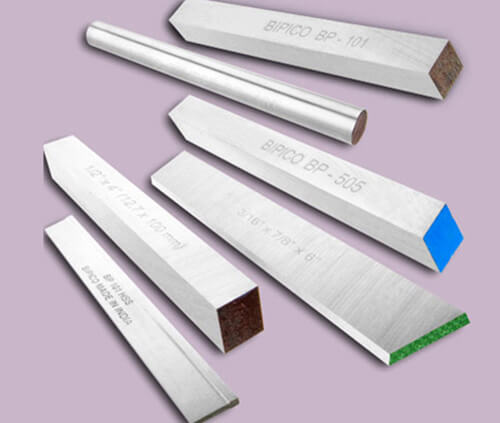

Tool Bits
HIGH SPEED STEEL TOOL BITS are manufactured from the finest quality Cobalt Molybdenum & Tungsten bearing grades of High Speed Steel. Widely used for machining and variety of ferrous and nonferrous metals. Sophisticated heat treatment provides more life between two regrinds.
Jigsaw & Reciprocating Blades
BIPICO offers only industrial quality saw blades in normal all hard and high speed edge bimetal saw blades types. The blades are used for straight cutting profile cutting of materials ranging from wood, plastic to metals. We manufacture blades suitable for the machines of various brands.
The bimetal blades have a high speed steel cutting edge welded to a tough, flexible back. This combination provides long life and makes them virtually unbreakable.
These blades are used in hand-held power tools and are often subjected to twisting and bending. We also offer a line of carbon steel jigsaw blades, mainly for wood cutting, that use a good value for the occasional user.
Our variable pitch blades will cut a wider section of materials and thicknesses than constant pitch blades.
Special purpose reciprocating blades include scroll cutting, plaster cutting and carbide grit saws. Special purpose jigsaw blades include blades for smooth wood cutting, carbon steel blades for wood cutting and also flush cutting, scroll cutting and carbide grit saws.
SAWS
Hacksaw Frame
The Best Quality Hacksaw Frame
Featuring a Zinc Die cast handle.
Tubular frame is very rigid & reduce operator’s fatigue drastically.
G.P. Saw
Applications
- 10 TPI >> Cutting non-ferrous, ferrous bars, sections, angles, channels, cables, asbestos sheets etc.
- 14 TPI >> Cutting sheets, galvanised pipes, PVC pipes, cement pipes, Ceramic pipes & other thinner sections.
- 6 TPI >> Cutting hard wood
- 4 TPI >> Cutting soft wood

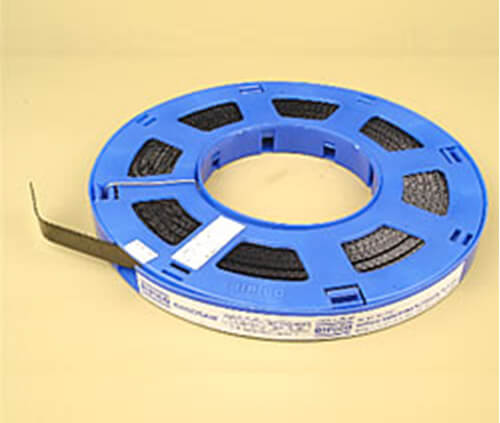

Bimetal Bandsaw Blades
Top Quality, Rigorously Tested bandsaw blades are supplied in coils or in welded loops. Made in our most modern factory, we have a comprehensive range of bandsaws for cutting ferrous and non-ferrous metals, wood and plastic, and other commonly used materials.
| Regular M2 | |||
|---|---|---|---|
| Size in mm | Size in inch | Constant Pitch | Variable Pitch |
| 13X0.65 | 1/2X0.025 | 6, 10,14 TPI | 8/12, 10/14 TPI |
| 13X0.90 | 1/2X0.035 | 3, 4, 6, 8, 14 TPI | 8/12, 10/14 TPI |
Carbide Tipped Bandsaw Blades
Carbide Tipped Bandsaw is recommended for cutting harder and difficult – to – machine alloys with better surface finish. It gives higher Productivity at economical cost.
Bipico Tri Chip
Non-set carbide tipped bandsaw available in standard Hi-Lo geometry with Positive main angle.
Cutting Application: Aluminum, Steel and Tool Steel
Bipico Multi Chip X-TRA
Non-set carbide tipped bandsaw available with positive main angle with 5 tooth geometry for aggressive cutting.
Cutting Application: Aluminum Alloy, Difficult – to – cut Aluminum, in general Aluminum application on automatic high speed machine.
Bipico multi Chip Sins
Non-set carbide tipped bandsaw with positive main angle with 4 tooth geometry.
Cutting Application: Cutting of stainless steel, difficult tool steel, Titanium, Inconel alloys, Graphite and in general difficult to cut material.
Metal Cutting Bandsaw
